STANDARD EQUIPMENT:
- The machine
column is manufactured from high quality cast
iron FC-30, tempered for long term accuracy.
- FC-30 cast iron
table is tempered, hardened and precision
ground.
- The spindle is
precision machined from SCM-21 alloy steel.
tempered and carbon treated, ensuring maximum
stability for heavy duty cutting.
- X and Y axes
are driven by an AC servo motor for smooth
traverse.
- X and Y axis
Slideways are precision ground, and coated with
Turcite-B wear resistant media.
- The knee is
power elevated and has rapid traverse function.
- X and Y axes
employ precision ball screws.
- The drive gears
in the powerful vertical head are hardened and
precision ground for maximum wear resistant and
low noise running.
- Equipment with
an automatic lubricator for lubrication to
3-axis Slideways, feed screws, gears and
bearings, ensuring high working efficiency and
long service of parts.
- The coolant
tray effectively prevents cutting fluid leakage.
Employs high pressure coolant pump for efficient
chip removing.
Halogen work fight.
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
NET WEIGHT |
| AMJY2HT |
AM-JY2HT

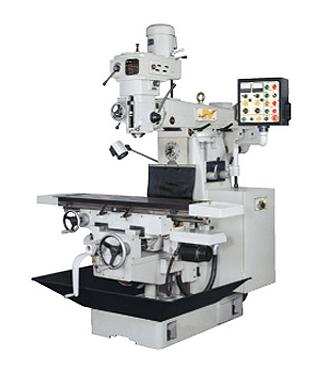

Horizontal Vertical Turret
Milling Machine |
5,840 LBS |
CONSTRUCTION:
 |
|
Horizontal head
-
Gear drive milling head.
The gears are hardened and
precision ground.
-
9 spindle speeds.
-
5 HP spindle motor.
-
Spindle taper NST#40
|
| |
|
|
 |
|
Turret
type head
-
Belt drive milling head.
-
16-step speeds 75-3600rpm
(standard),
Variable speeds 80-3800 rpm
(optional).
-
5 HP spindle motor.
-
Milling head tilts 90¢X
right and left.
-
Spindle taper NST#40
|
| |
|
|
 |
|
Powerful
vertical head
-
The gears are hardened and
precision ground on the gear
drive milling head.
-
9 spindle speeds.
-
5 HP spindle motor.
-
Milling head tilts 90¢X
right and left.
-
Spindle taper NST # 40
|
| |
|
|
 |
|
Power
elevation of knee
-
The knee elevation is driven
by an individual motor
for convenient operation.
The knee also has rapid
traverse function.
|
| |
|
|
 |
|
Servo
motor drive for two axes
-
The X and Y axes are driven
by an AC servo motor,
providing fast motion. Rapid
traverse speed up to 2500
mm/min.
|
| |
|
|
 |
|
Precision
ball screws on X and Y axes
-
The X and Y axes are
transmitted by precision
ball screws, combined with
preloaded double nuts for
extremely smooth and high
precision working, with
minimum backlash.
|
|
