*SPECIALS*
 |
GU 3200
|
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
WEIGHT |
| AUCG1 |
GU 32X50S
Semi-Auto Cylindrical Grinder |
5,940 LBS |
| AUCG2 |
GU 32X75S
Semi-Auto Cylindrical Grinder |
6,900 LBS |
| AUCG3 |
GU 32X100S
Semi-Auto Cylindrical Grinder |
7,750 LBS |
| AUCG4 |

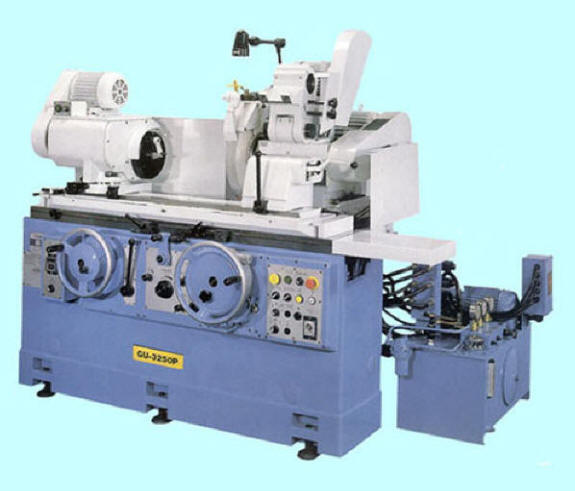

GU 32X50P
Automatic Universal Cylindrical Grinder |
5,940 LBS |
| AUCG5 |
GU 32X70P
Automatic Universal Cylindrical Grinder |
6,900 LBS |
| AUCG6 |
GU 32X1000P
Automatic Universal Cylindrical Grinder |
7,750 LBS |
|
|
GRINDING
OPERATIONS: |
STRAIGHT PLUNGE |
SHOULDER |
 TAPER |
TRAVERSE |
 FACE |
INTERNAL |
|
FEATURES:
|
WORKHEAD
- Precisely Aligned
Workhead
- Graduated Swivel Base
For Easy Swiveling Up To 90°
Toward Wheelhead And Up To 30° Away From Wheelhead
- Dynamically Balanced
Motor
- Workhead Spindle Speed
10~250 RPM
- Automatic Start-Stop
Control In Conjunction With Automatic Advance-Retraction
Of Wheelhead
- Work Inching By
Pushbutton To Assure Easy Checking Of Component Mounted
Between Centers Or On Chuck
|
WHEELHEAD
- Swiveling Feature
Ranged From 0 To 30 Degrees Toward Workhead Or Footstock
Assures Angular Setting
- Grinding Wheel And
Guard Can Be Mounted At The Right Side Of The Wheelhead
For Angular Grinding
- Precision C1 Grade Ball
Screw To Achieve High Accuracy
- 5 HP Motor
- Wheel Diameter From 14"
To 8.7"
- Minimum Grinding Wheel
Can Grind Component Of Diameter More Than 0.79"
- Wheelhead Body Can Be
Moved Back Manually 3.7" To Provide Extra Capacity For
Large Diameter Component
|
FOOTSTOCK
- Precisely Aligned
Footstock
- Precision Axial
Movement Of Center In The Precisely Machined Sleeve
- Lever-Clamping For
Quick Movement Of Footstock To Desired Position Along
Table
- Quick-Acting Retraction
Of Center By A Spring-Loaded Lever
- Sensitive Adjustment Of
Center Position By Screw At The Rear End Of The
Footstock
- Double Protection By
Covers And Bellows Against Intrusion Of Coolant Or Dust
|
COOLANT SYSTEM
- Coolant Tank Of 39.6
Gallons
- Coolant Flows And Stops
Automatically According To Advance Andretraction Of
Wheelhead
- Isolated Location Of
The Tank For Easy Cleaning And Replacing
|
|
