1400/1600 TVS




MADE IN TAIWAN

STOCK# MODEL NET WEIGHT
AVTL1440TVS 14X40 TVS Variable Speed  Engine Lathe 3,200 LBS
AVTL1460TVS 14X60 TVS Variable Speed  Engine Lathe 3,640 LBS
AVTL1640TVS 16X40 TVS Variable Speed  Engine Lathe 3,530 LBS
AVTL1660TVS 16X60 TVS Variable Speed  Engine Lathe 3,750 LBS

FEATURES:
BED & STAND
  • Base One Piece Casting
  • Meehanite Casting, Vibration Stress Relieved
  • Induction hardened And Precision Ground Bed Ways
  • Precision Hand Scraped Removable Gap
  • Foot Brake
  • Turcite B Coating Between The Bed And Carriage
 SPINDLE
  • Supported By 2 Precision Taper Roller Bearings And One Ball Bearing
  • Dynamically Balanced, Hardened, And Precision Ground
  • D1-6 Spindle Nose
  • 2 1/6" Diameter Spindle Nose
APRON & SADDLE
  • Automatic Feed And Threading, Fully Interlocked
  • Saddle And Top Slide Locking System
  • Forward-Off-Reverse Lever
  • 4 Way Tool Post
  • T Slot Compound
 DRIVE TVS
  • 5 HP 4 Pole AC Inverter
  • UL AC Inverter
  • Conveniently Located Control Panel
  • Digital RPM Meter
  • 20~400 RPM Low Range
  • 400~2800 RPM High Range
UNIVERSAL GEAR BOX
  • Oil Bath Lubrication
  • Heat Treated Precision Ground Gears
  • Inch, Metric, Module, And Diametrical Threads
 HEAD STOCK
  • TE Series-Lubrication System Oil Bath
  • TVS Series-Pressurized Lubrication System
  • All Gears Chromium Molybdenum, Heat Treated And Precision Ground

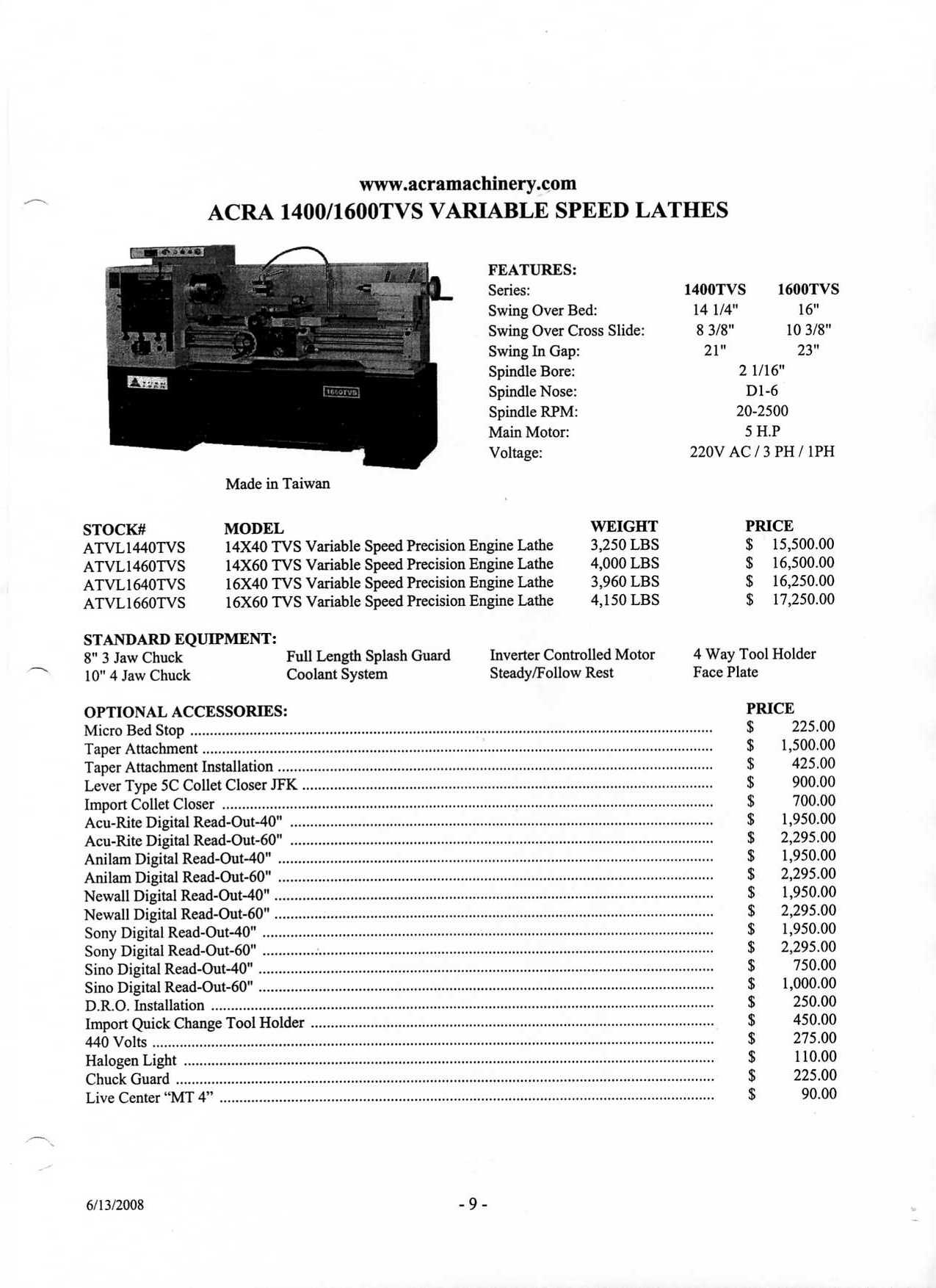

Brochure

Price List
