PRODUCTS:
*SPECIALS*
 |

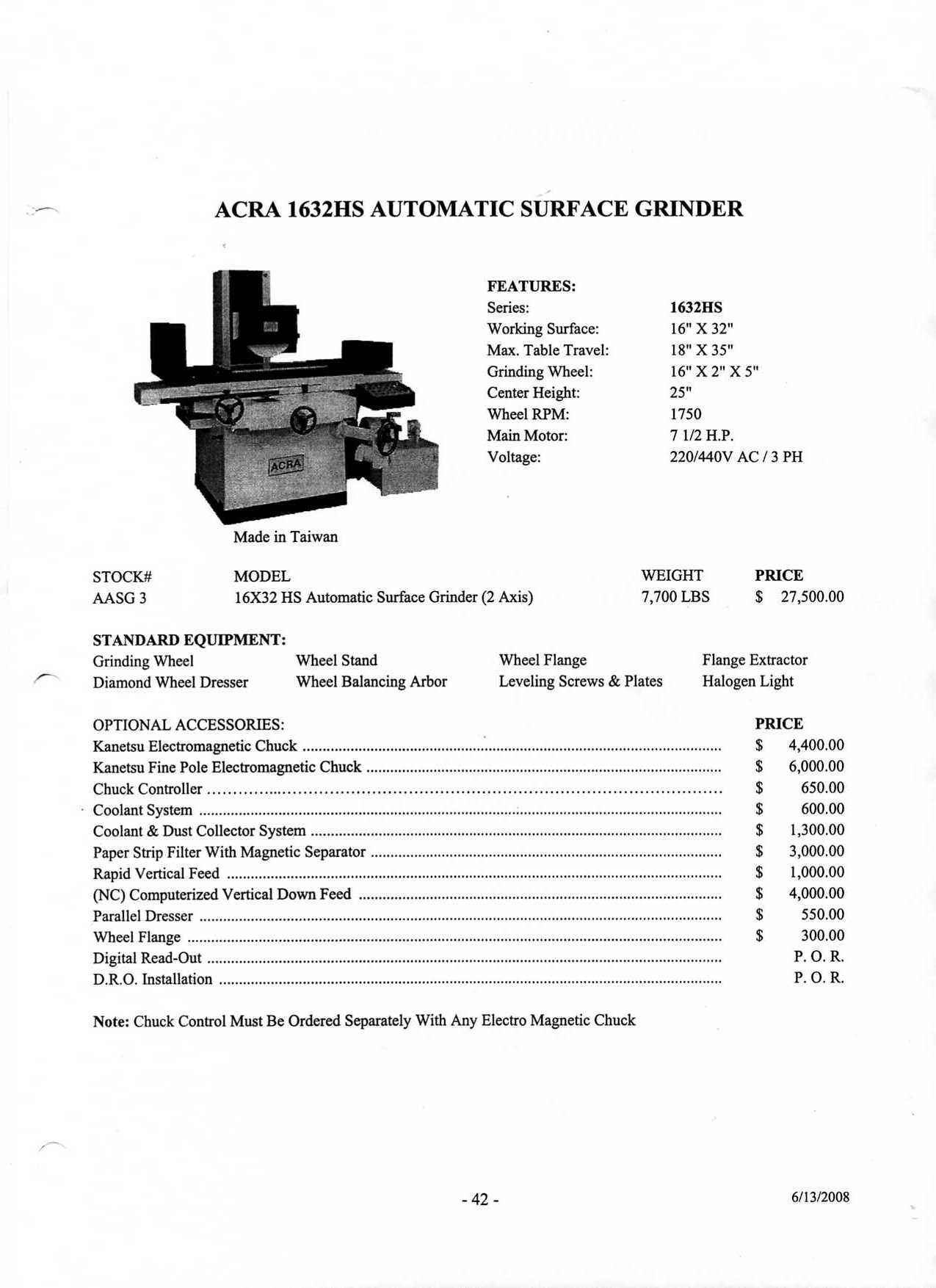

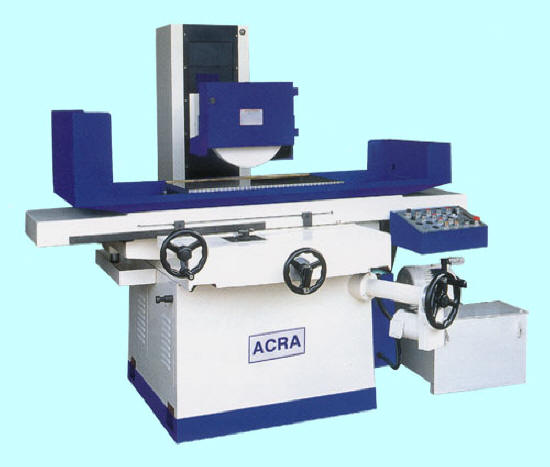

1632 HS
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
NET WEIGHT |
| AASG3 |
16X32 HS
Automatic Surface Grinder (2 Axis) |
7,150 LBS |
FEATURES:
|
CARTRIDGE-TYPE PRECISION SPINDLE
- Spindle Is Supported By 4 Pieces
Preloaded Super Precision Angular Contact Ball Bearing to Assure
Excellent Accuracy, And This Outstanding Designed Spindle Is
Suitable For Heavy Duty Grinding Jobs.
|
DOUBLE WALL & STRESS RELIEVED MAIN
CASTINGS
- The Main Machine Parts-Base And
Column Are Made Of High Quality "Double Wall" Cast Iron With
Annealing Treatment To Eliminate The Internal Stress And Also With
Ribs To Give High Stiffness And Stability for All Kind Of Grinding
Jobs
|
LOW-FRICTION COATED SURFACE
- The Slideways Consist Of One Piece
Cast Iron, Surface In Contact With "TURCITE-B" Surface of
Longitudinal Table Ways Are All Precision hand Scraped, And
Guarantee The Contact Point Over 60~70%, Ensure Very High Accuracy
And High Resistance. Automatic-Saddle Intermittent Feed Is Driven By
A Electric And Feed Motor Can Be Pre-Set From 0.006"~1" With
Variable And Smooth movement Of Saddle, The Machine is Suitable For
Rough And Fine Grinding.
|
MICRO-PROCESSOR BASED CONTROL
- Micro-Processor Based Control
Provides Powerful Function, Trouble Free operation And Easy
Maintenance.
|
AUTO-DOWN FEED-3 AXIS AUTOMATIC TYPE
- Vertical Driven By "STEPPING
MOTOR", Easily Setting For rough Grinding, Fine Grinding And
Sparkout Grinding Feeds. And Intermitted Setting Tarrytime For Rough
Grinding, Find Grinding And Sparkout Grinding.
|
