PRODUCTS:
*SPECIALS*
 |

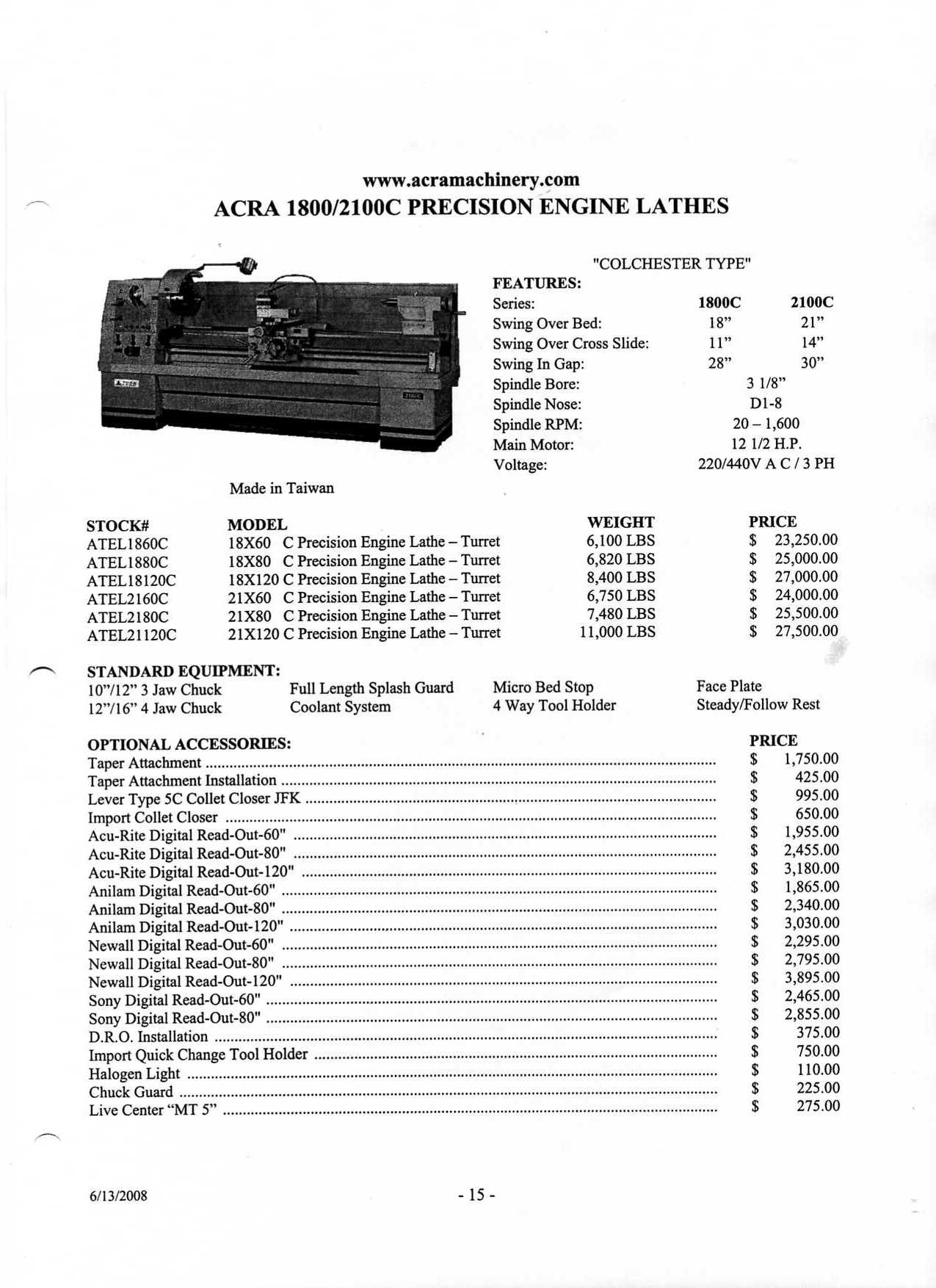

1800/2100 C
|
|
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
GROSS WEIGHT |
|
ATEL1860C |
18X60 C Precision Engine
Lathe - Turret |
6,100 LBS |
|
ATEL1880C |
18X80 C Precision Engine
Lathe - Turret |
6,820 LBS |
|
ATEL18120C |
18X120 C Precision Engine
Lathe - Turret |
8,400 LBS |
|
ATEL2160C |
21X60 C Precision Engine
Lathe - Turret |
6,750 LBS |
|
ATEL2180C |
21X80 C Precision Engine
Lathe - Turret |
7,480 LBS |
|
ATEL21120C |
21X120 C Precision Engine
Lathe - Turret |
11,000 LBS |
|
|
FEATURES: |
|
HEAD STOCK
- Dynamic Balanced
Spindle
- Spindle Is Supported By
3 Points Precision Bearings: 2 Taper Roller And 1 Ball
Bearing
- Housing Are Properly
Stabilized And Deflection Free
- All Gears And Shafts
Are Made By Chromium Molybdenum Steel With Segmentation
And Precision Ground
- Build In Mechanism
Clutches made By British Matrix
- Forced Lubrication
System
- Nylon Safety Gears In
End Train
|
BED
- Bed Meehanite Casting,
Vibration Stress Relieved
- Induction Hardened And
Precision Ground Bed Ways
- Precision Hand Scraped
Removable Gap Bed
- Foot Brake
- Turcite B Coating
Between The Bed And Carriage
|
LUBRICATION
- Oil Sight Window For
Efficient Checking Oil Action
- Headstock Pressure
Lubrication System Ensure Its Lubricated And Cooling For
High Speed Operations
- Lubrication in Gearbox
& Apron
- External Oil Tank
Lowering The Oil Temperature; It Helps The Spindle
Running Temperature
|
APRON
- Right Hand Side Or Left
Hand Side Apron: Hand-Wheel Available As Required
- Integrated Automatic
Device For Longitudinal & Cross Feeds, Forward And
Reverse Feeds
- Overload Safety Device
|
UNIVERSAL GEAR BOX
- Induction Hardened And
Ground Gears And Shafts
- Wide Threads Cutting
Capacity For Imperial, Metric, Module, And Diametrical
Pitch
|
CARRIAGE & SLIDE
- Anti-Float Design,
Backlash Eliminator Fitted In Cross Slide Nut
- Safety Clutches At Feed
Shaft Lever
- Dual Reading Dials
- One Shut Lubrication
For Carriage And Tops Slide
|
|
