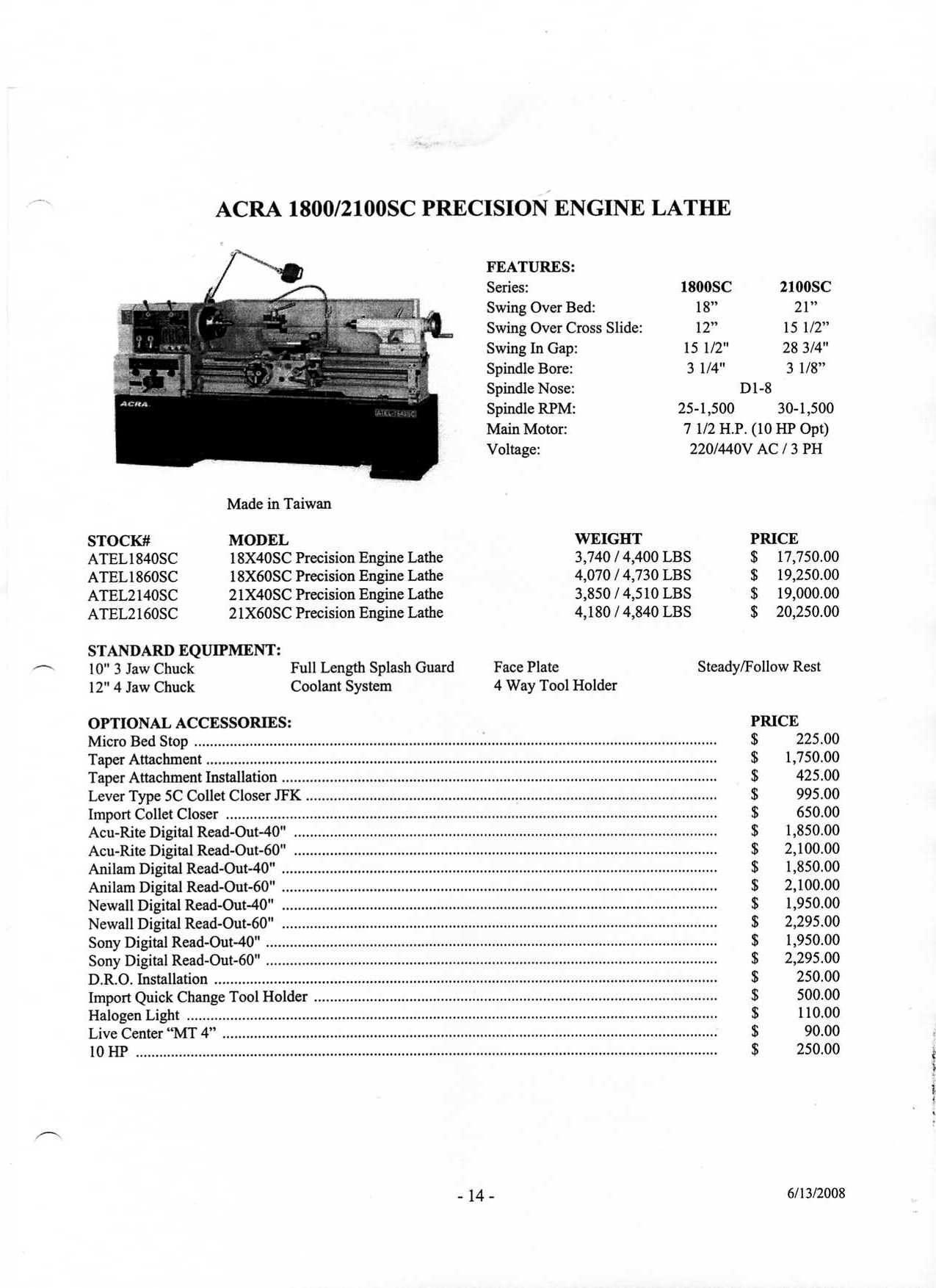

1800/2100 SC




MADE IN TAIWAN

STOCK#

MODEL

 NET WEIGHT
ATEL1840SC 18X40 SC Precision Engine Lathe 3,740 LBS
ATEL1860SC 18X60 SC Precision Engine Lathe 4,070 LBS
ATEL2140SC 21X40 SC Precision Engine Lathe 3,850 LBS
ATEL2160SC 21X60 SC Precision Engine Lathe 4,180 LBS


FEATURES:
BED & STAND
  • Meehantie Cast Iron, Vibration Stresses Relieved
  • Induction Hardened And Precision Ground Bed Ways
  • Precision Hand Scraped Removable Gap
 HEAVY DUTY SPINDLE
  • Machined From Forged Alloy Steel, Hardened Ground & Dynamically Balanced
  • Three Point Support By High Grade Precision, Machine Tool Taper Roller & Ball Bearings
HEADSTOCK
  • Housing Is Vibration-Absorbent, Deflection-Free
  • Gears Are Hardened & MAAG or REISHAUER Ground
  • Spindle machined From Forged Alloy Steel, Hardened, Ground & Treated By Dynamically Balanced
  • Spindle Is Supported At Three-Point By High Precision Taper Roller And Ball Bearings Keeps Rigid, High Accuracy
 CARRIAGE & SLIDE
  • Anti-Float Design Backlash Eliminator Fitted In Cross Slide Nut
  • Safety Clutch At Feed Shaft
  • One Shot Lubrication In Carriage & Top Slide
  • Dual Dials Supply Inch System Screw
  • Metric Dial Supply Metric System Only

GEAR BOX

  • Universal Type Allowing A Wide Range Of Inch, Metric, M.P., D.P. Threads Without Change Gears


APRON
  • /H Or L/H Wheel Can Be Available On Request
  • Integrated Automatic Control For Longitudinal & Cross Feeds, Forward & Reverse Feeds



 SAFETY FEATURES
  • Nylon Safety Gears In End Train
  • Shear Pin In Leadscrew

Brochure

Price List


Purser's Precision Machines, Inc.
7533 Pence Road
Charlotte, NC 28215

Phone: (704)563-7572
Fax: (704)563-1872
Toll free: 1-800-275-8013
