2200 G-ACH




MADE IN TAIWAN

STOCK#

MODEL

 NET WEIGHT
ATEL2260G 22X60G ACH Precision Engine Lathe 6,500 LBS
ATEL2290G 22X90G ACH Precision Engine Lathe  7,000 LBS
ATEL22120G 22X120G ACH Precision Engine Lathe  7,500 LBS
ATEL22160G 22X160G ACH Precision Engine Lathe  8,250 LBS


FEATURES:
BED & STAND
  • Meehantie Cast Iron, Vibration Stresses Relieved
  • Induction Hardened (HS70 Degree) And Precision Ground
  • Precision Hand Scraped Removable Gap
  • Foot Brake
 APRON AND SADDLE
  • Manual And Automatic Lubrication System- Oil Distributor Adjusted To Lubricating Bedways And Cross Side Or Both
  • Overload Protection Device
  • Cross Slide Is Hardened And Precision Ground
  • Cross Slide Screws Are Hardened And Oil Bathed
  • Forward-Off-Reverse Lever
  • Top And Saddle Slide Locking System
  • T-Slot Compound For America Area


SPINDLE
  • Supported By 3 Precision P-Grade Taper Roller Bearings
  • Dynamically Balanced, Hardened And Precision Ground



 HEADSTOCK
  • All Gears Made By Chromium Molybdenum Steel And Segmentation Treated And Precision Ground
  • Forced Lubrication System


UNIVERSAL GEAR BOX
  • Oil Bath Lubrication
  • Heat-Treated Gears
  • Inch/Metric/Module/Diametrical Threads
  • Output Shaft Is Designed With Safety Pin



 TAILSTOCK
  • Quill Made By Chromium Molybdenum Steel With Segmentation And Precision Ground
  • Tailstock Spindle 2 15/16" And Spindle Travel 7" Two Speed With 1:1 And 1/4:1 Change Feeds

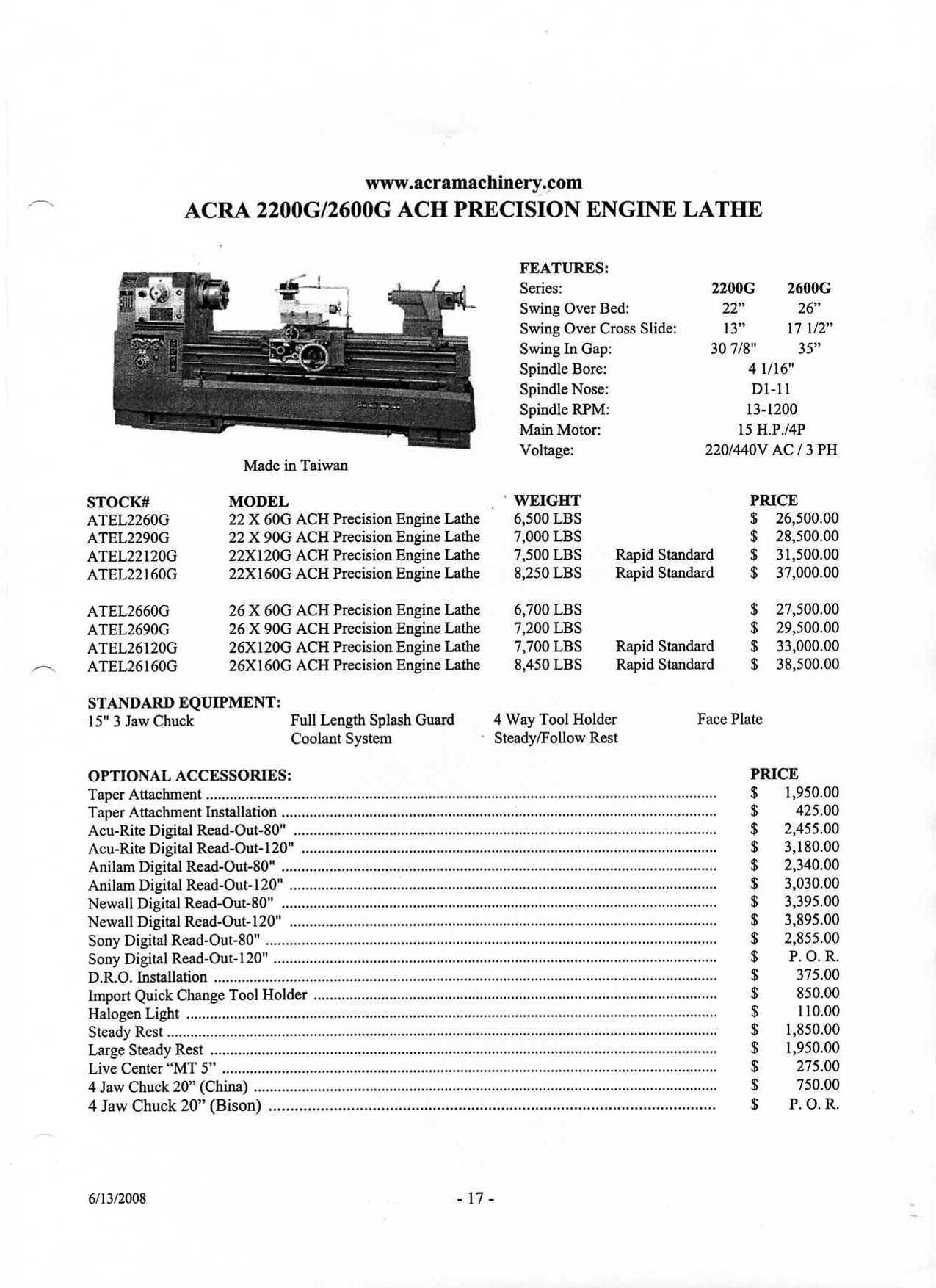

Brochure
