PRODUCTS:

*SPECIALS*

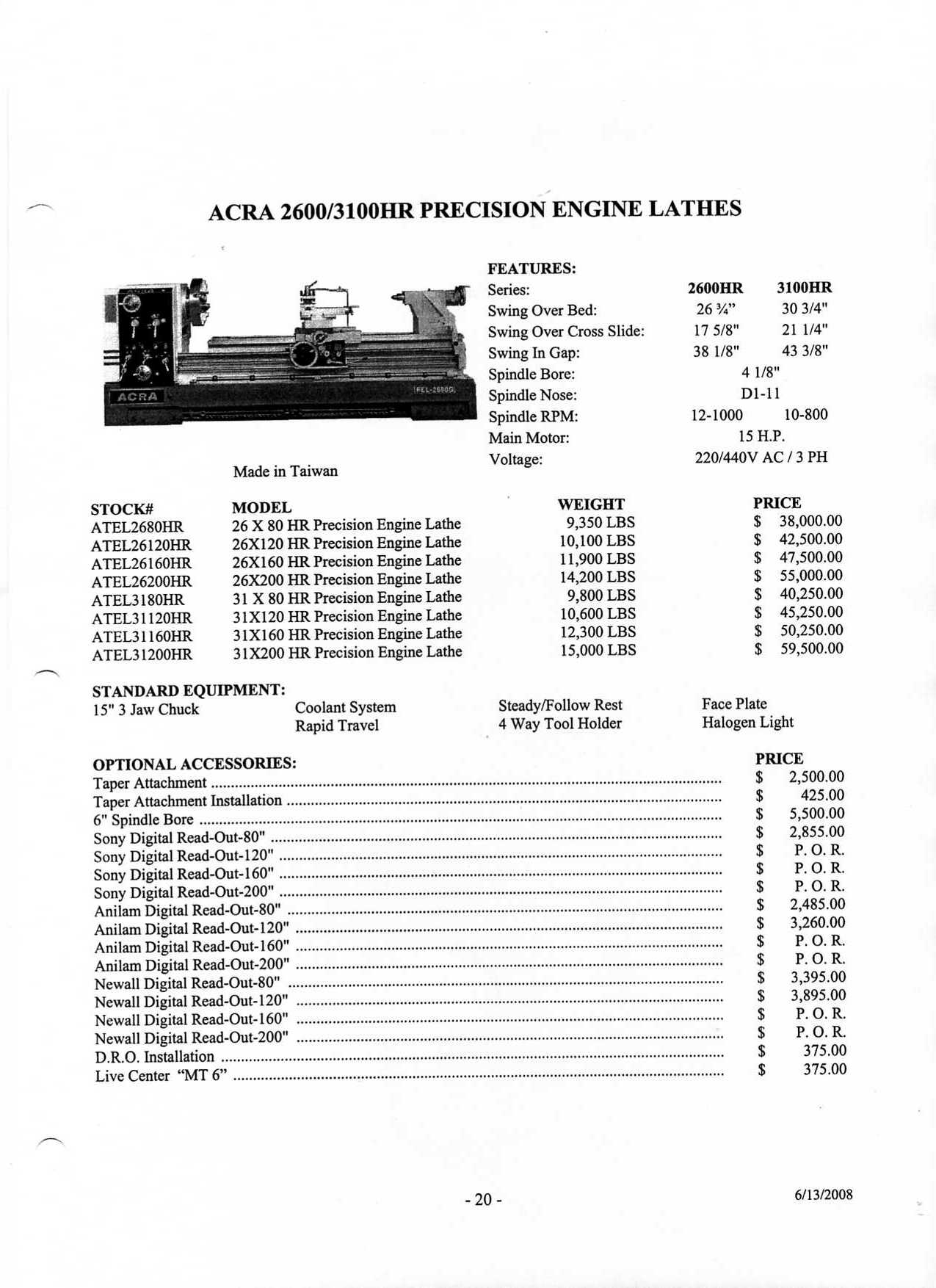

2600/3100 HR

MADE IN TAIWAN

STOCK#	MODEL	WEIGHT
ATEL2680HR	26 X 80 HR Precision Engine Lathe	9,350 LBS
ATEL16120HR	26 X 120 HR Precision Engine Lathe	10,100 LBS
ATEL26160HR	26 X 160 HR Precision Engine Lathe	11,900 LBS
ATEL26200HR	26 X 200 HR Precision Engine Lathe	14,200 LBS
ATEL3180HR	31 X 80 HR Precision Engine Lathe	9,800 LBS
ATEL31120HR	31 X 120 HR Precision Engine Lathe	10,600 LBS
ATEL31160HR	31 X 160 HR Precision Engine Lathe	12,300 LBS
ATEL31200HR	31 X 200 HR Precision Engine Lathe	15,000 LBS

FEATURES:

SPINDLE

Supported By 2 Precision Taper Roller And One Ball Bearing
Dynamically Balanced, Hardened And Precision Ground
D1-11 Or A2-11 Spindle Nose
4 1/8" Spindle Bore-Optional 6 1/16"

TAIL STOCK

4 1/8" Quill Diameter, MT No.6, With 8 1/4" Travel Knock Out Tang
2 Speed For Easy Drilling

BED & STAND

One Piece Heavy Duty Structure Casting Floor Bed
Meehanite Casting Vibration Stress Relieved
Induction Hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap
Bed Width 18"

APRON

Automatic Feed And Threading, Fully Inter-Locked
Saddle And Top Slide Locking System
Forward-Off-Reverse Lever
Build In Rapid Feed Motor For B.C. Longer Than 80"
Cross Slide Way Hardened And Precise Ground
4 Way Tool Post
T Slot Compound
Cross Slide Screws Hardened And Oil Bathed
Rapid Longitudinal Feed-DBC-Over 120"

UNIVERSAL GEAR BOX

Oil Bath Lubrication
Heat Treated Precision Gears
Inch, Metric, Module, And Diametrical Threads

HEAD STOCK

All Gears Chromium Molybdenum: Heat Treated And Precision Ground
Lubrication System Oil Bath
Electromagnetic Clutch With Brake Available For 4 1/8" Spindle Bore As Optional
