3200/4000 HSR
Series
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
| AASG |
32X(40,60,80,120) HSR
Automatic Surface Grinder |
| AASG |

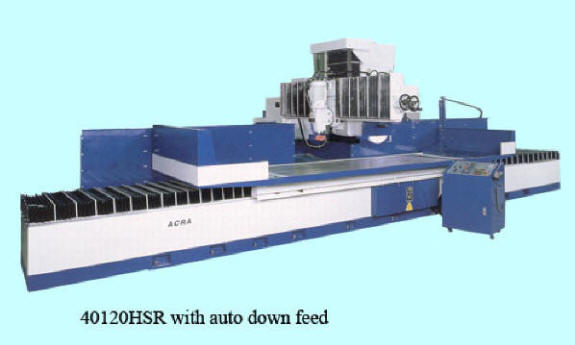

40X(40,60,80,120) HSR
Automatic Surface Grinder |
FEATURES:
|
 |
- The Column Of Machine Uses Ribs To
Reinforce Its Structure Rigidity
-
The Cross-Radial Arm Design Uses The
Box Structures. This Cross-Type
Rib Reinforcement Increases The Rigidity And Also Reduces The
Vibration And Deformation.
-
The High Precision Heavy Pre-Load Linear Guilder And Accurate
Ball-Screw Transmission System Are Used In The Vertical Feeding.
-
As A Result, A Powerful And Precise
Grinding Force Is Formed.
|
- The Traditional
Hand Wheel-Feeding System With The Combination
Of AC Servomotor Is Replaced By A Manual Pulse
Generator.
- The 6-Step
Variable Hydraulic System Is Used In The Working
Table. However, The Working Table Can Be
Adjusted To Each Desired Level
- The Lubrication
Of The Whole Machine Is Done By A Forced
Circulation Oil System
- These Action
Helps To Maintain The Accuracy And Also Extend
The Lifetime Of Glided Surface And Transmission
System
- Two Sets Of
Vertical Spindle System Are Assembled To Grind
Various Type Of Grinding Guide Of Table And
Grooves. This Is The One-Step Finished Work
|
