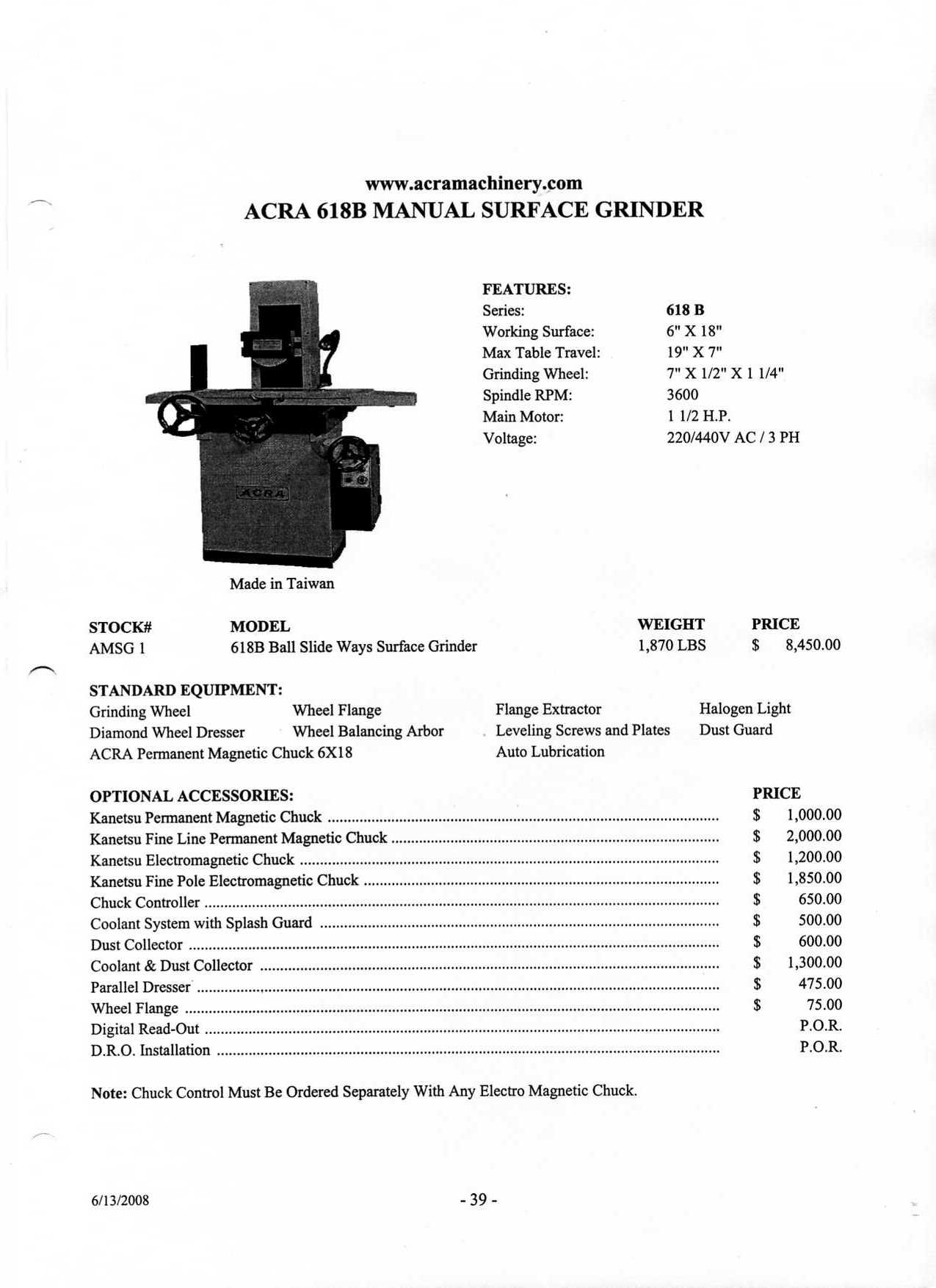

618 B
|
|
MADE IN TAIWAN
|
STOCK# |
MODEL |
NET WEIGHT |
| AMSG1 |

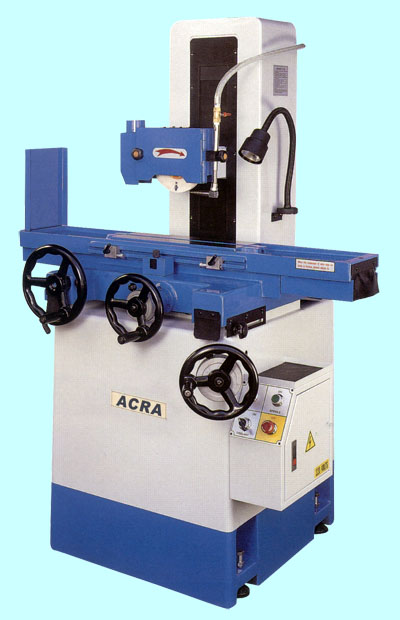

618B Ball
Slide Ways Surface Grinder |
1,584 LBS |
FEATURES:
|
|
MACHINE CONSTRUCTION
-
Main Parts Of The Machine
Such As Base, Column, Saddle Are Made of Meehanite High Quality Cast
Iron, Which Are Stress Released By Annealing To Ensure Stable
Rigidity And High Accuracy And Extend Machine Life
|
SLIDEWAYS (BALL WAYS OR TURCITE WAYS)
- Both Longitudinal & Cross
Slide-Ways Are Precisely Hand-Scraped And laminated With TURCITE-B
Providing A Smooth Travels And Ever Low Wearing, Mostly Suitable For
Grinding.
- Ball Ways Are Available For Hand
Feed Grinder. Finely Selected Steel Balls Are Utilized For A Light
Grinding Jobs And Maximize Working Efficiency.
- Cross Slideways On "DOUBLE VEES"
Structure To Ensure The Highest Accuracy.
|
SPINDLE
- The Precision Cartridge Spindle,
Greased & Free Of Maintenance, Is Incorporated With 4 Pieces Of
Preloaded Class 7 Super precision Angular Contact Ball Bearings In A
Room with Constant Temperature Offering A Stable & Nose-Free
Rotation So As To Extend Its Longevity. The Spindle Is Directly
Mounted Onto The Motor For Direct Drive. It Not Only Provides A High
Torque But Also Vibration Free Under Heavy Grinding.
|
AUTOMATIC LUBRICATION SYSTEM
- Automatic Lubrication System Is
Furnished As Standard To Provide Ample Lubrication On All Slideways
And Leadscrews Enabling A Smooth Movement So As To Minimize Wearing
Possibility.
|
CENTRALIZED CONTROL PANEL
- All Buttons & Switches Are Situated
On The Control Panel For An Easy And Convenient Operation.
|
