ASL-45/52/78/90

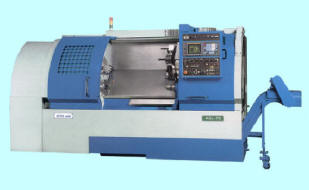

Click On The Image To Enlarge
DESCRIPTION:
The ACRA ASL Series CNC Precision Lathes Are Superior SLANT BED CNC Turning Centers. It Is Fast And Precise, And It's Standards Meet Or Exceed JIS To Deliver Lasting Quality And Productivity.

The Construction Of This Machine Results In Increased Cutter Life And Superior Finishes. The Heavy Ribbed TORQUE TUBE MEEHANITE Casting Is Designed To Withstand Shock And Torque.

The Integral BOX WAYS Are Hardened To A Minimum Of 58 HRC To At Least 0.050", And Turcite-B Mated Surfaces. The World Class Spindle Cartridge Is Direct Belt Drive And Its Special housing Virtually Eliminated Vibration And Thermal Distortion. The Quick And Rugged Turret Is A Reliable Bi-Directional hydraulic Type With Curvic Coupling To Allow Heavy Cuts. REMOVABLE COOLANT TANK AND STEEL HINGED CHIP CONVEYOR Are Standard Features For Efficient Operation. Live Tool, "C" Axis, Etc. Options Are Available.

MADE IN TAIWAN

STOCK#	MODEL	NET WEIGHT
ASL-45	ASL 45 CNC Precision Lathes	7,055 LBS
ASL-52	ASL 52 CNC Precision Lathes	7,055 LBS
ASL-78	ASL 78 CNC Precision Lathes	16,535 LBS
ASL-90	ASL 90 CNC Precision Lathes	19,000 LBS
