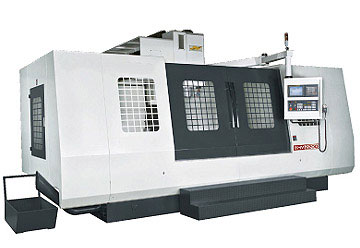

AVMC-BMV2200 Vertical Machining Center

FEATURES:

The gear-type spindle is transmitted by a gearbox with high/low speed change, featuring greater torque output for heavy duty machining.

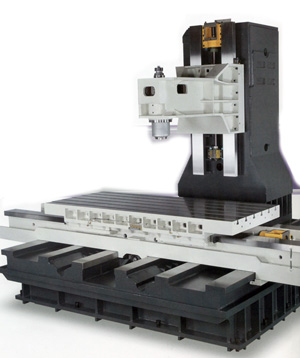

Massive base weighs 9 tons combined with extra wide 6 box ways (span between ways up to 2,800 mm) providing solid support for the entire machine. 25-ton total machine weight features unmatched structural rigidity.

Big table surface measures 2,400(L)x 1,000(W)mm permits maximum load up to 3,500kgs, making the machine ideal for medium and large mold machining.
Extra large Y-axis and throat depth provide increased working capacity.
Comprehensive Chip Removing System: Two chip augers are provided at the right and left side of the machine combined with powerful flushing device and screw type or link chain type (optional) chip conveyor at front of the machine.

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

AVMC-BMV2200 AVMC-BMV2200 Vertical Machine Center 55,100 LBS
