FEL-2100 Series

Click On The Image To Enlarge
DESCRIPTION:

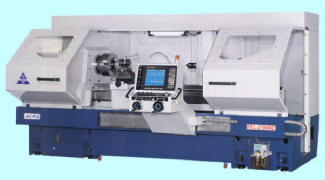

The ACRA FEL-2100 Series CNC Lathes Are Versatile Teach Type CNC Flat Bed Lathes With Manual, Conversational, Teach, And CNC Operating Modes. The Bed Features A Rugged Meehanite Casting, With Thick Widely Spaced Cross Supports And Induction Hardened Ground Ways For Accuracy And Rigidity.

Coolant System With Removable Tank Is Standard Precision Ground Ball Screws Are Driven By AC Digital Servo Motors. The Spindle Is Driven Through A 2-Speed Gearbox By An Infinitely Variable AC Inverter And Includes Constant Surface Speed And Threading Functions.
This Machine Will Be Useful On Day #1 With Any Level Of Operator, For Production Or Prototype. It Can Be Operated Manually With Job Joysticks And MPG Hand Wheels, Teach And Repeat, User Interactive Conversational, Or Full Blown CNC G-Code / M-Function With Macros. Some Models Include A Part Shape Program Generator, With Graphics Display.

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

FEL2140 FEL 21X40 CNC Teach Lathes 8,926 LBS

FEL2160 FEL 21X60 CNC Teach Lathes 9,698 LBS

FEL2180 FEL 21X80 CNC Teach Lathes 10,580 LBS

FEL21120 FEL 21X120 CNC Teach Lathes 13,886 LBS
