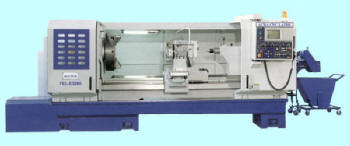

FEL-E28/E32 Series

Click On The Image To Enlarge
DESCRIPTION:
The ACRA FEL-E28 And FEL-E32 Emperor Turn Lathes Are Heavy Duty Flat Bed CNC Machines, And Builder Is ISO 9002 Certified. The One Piece Base Is Meehanite, Heavily Ribbed Double Wall With Integral Box Ways That Are Induction Hardened And Ground.

The High Precision Ballscrews Are Driven By AC Digital Servo Motors. The Spindles Are Available 4" Or 6", Supported By Three C-7 Angular Contact Bearings, And Driven By A 2-Speed Gearbox With World Class Quality Alloy Steel Precision Ground Gears. A Re-Circulating Oil Chiller Unit Keeps The Headstock Temperature Constant, Further Insuring Excellent Accuracies And Finishes. These Machines Are Available With A Wide Array Of Options For A Variety Of Manufacturing Needs. FANUC Control System And AC Digital Drives Are Standard, But Other Control Systems Can Be Specified.

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

FELE2880 FEL E 28X80 Emperior CNC Lathe 17,780 LBS

FELE28120 FEL E 28X120 Emperior CNC Lathe 20,060 LBS

FELE28160 FEL E 28X160 Emperior CNC Lathe 22,250 LBS

FELE28200 FEL E 28X200 Emperior CNC Lathe 24,860 LBS

FELE3280 FEL E 32X80 Emperior CNC Lathe 18,380 LBS

FELE32120 FEL E 32X120 Emperior CNC Lathe 20,660 LBS

FELE32160 FEL E 32X160 Emperior CNC Lathe 22,850 LBS

FELE32200 FEL E 32X200 Emperior CNC Lathe 25,460 LBS
