FEL-P28/P32/P36
Series
|

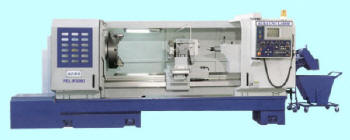

Click On The
Image To Enlarge |
DESCRIPTION:
The ACRA FEL-P28 And FEL-P36 Power Turn Lathes Are Heavy
Duty Flat Bed CNC Machines, And Builder Is ISO 9002
Certified. The One Piece Base Is Meehanite, Heavily Ribbed
Double Wall With Integral Box Ways That Are Induction
Hardened And Ground. |
|
The High Precision Ballscrews Are
Driven By AC Digital Servo Motors. The Spindles Are Available
5.5", 9", Or 12", Supported By Three C-7 Angular Contact
Bearings, And Driven By A 4-Stage Automatic Gearbox With
World Class Quality Alloy Steel Precision Ground Gears. A
Re-Circulating Oil Chiller Unit Keeps The Headstock
Temperature Constant, Further Insuring Excellent Accuracies
And Finishes. These Machines Are Available With A Wide Array
Of Options For A Variety Of Manufacturing Needs. FANUC
Control System And AC Digital Drives Are Standard, But Other
Control Systems Can Be Specified. |
MADE IN TAIWAN
|
STOCK# |
MODEL |
NET WEIGHT |
|
FELP2880 |
FEL P 28X80 Power CNC Lathe |
22,245 LBS |
|
FELP28120 |
FEL P 28X120 Power CNC
Lathe |
24,230 LBS |
|
FELP28160 |
FEL P 28X160 Power CNC
Lathe |
26,210 LBS |
|
FELP28200 |
FEL P 28X200 Power CNC
Lathe |
28,200 LBS |
|
FELP3280 |
FEL P 32X80 Power CNC Lathe |
23,130 LBS |
|
FELP32120 |
FEL P 32X120 Power CNC
Lathe |
23,130 LBS |
|
FELP32160 |
FEL P 32X160 Power CNC
Lathe |
27,090 LBS |
|
FELP32200 |
FEL P 32X200 Power CNC
Lathe |
29,070 LBS |
|
FELP3680 |
FEL P 36X80 Power CNC Lathe |
24,000 LBS |
|
FELP36120 |
FEL P 36X120 Power CNC
Lathe |
26,000 LBS |
|
FELP36160 |
FEL P 36X160 Power
CNC Lathe |
27,970 LBS |
|
FELP36200 |
FEL P 36X200 Power CNC
Lathe |
29,960 LBS |
|
[
