FEL-S42/S46/S50 Series

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

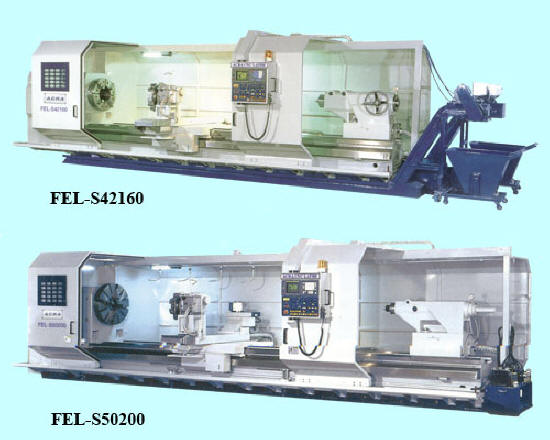

FELS4280 FEL S 42X80 Super CNC Lathe 26,870 LBS
FELS42120 FEL S 42X120 Super CNC Lathe 29,070 LBS
FELS42160 FEL S 42X160 Super CNC Lathe 32,170 LBS
FELS42200 FEL S 42X200 Super CNC Lathe 33,480 LBS
FELS4680 FEL S 46X80 Super CNC Lathe 27,970 LBS
FELS46120 FEL S 46X120 Super CNC Lathe 30,170 LBS
FELS46160 FEL S 46X160 Super CNC Lathe 32,380 LBS
FELS46200 FEL S 46X200 Super CNC Lathe 34,580 LBS
FELS5080 FEL S 50X80 Super CNC Lathe 29,080 LBS
FELS50120 FEL S 50X120 Super CNC Lathe 31,280 LBS
FELS50160 FEL S 50X160 Super CNC Lathe 33,480 LBS
FELS50200 FEL S 50X200 Super CNC Lathe 35,680 LBS



DESCRIPTION:

The ACRA FEL-S42, S46, & S50 Super Turn Lathes Are Heavy Duty Flat Bed CNC Machines, And Builder Is ISO 9002 Certified. The One Piece Base Is Meehanite, Heavily Ribbed Double Wall With Integral Box Ways That Are Induction Hardened And Ground. The High Precision Ballscrews Are Driven By AC Digital Servo Motors. The Spindles Are Available 6", 9 ", 12", or 14" And Are Supported By Three C-7 Angular Contact Bearings, And Driven By A 4-Stage Automatic Gearbox With World Class Quality Alloy Steel Precision Ground Gears. A Re-Circulating Oil Chiller Unit Keeps The Headstock Temperature Constant, Further Insuring Excellent Accuracies And Finishes. These Machines Are Available With A Wide Array Of Options For A Variety Of Manufacturing Needs. FANUC Control System And AC Digital Drives Are Standard, But Other Control Systems Can Be Specified.

[ FEL-S42/S46/S50 Specs | Accessories | Brochure ]

[ CNC Lathe Models ]
