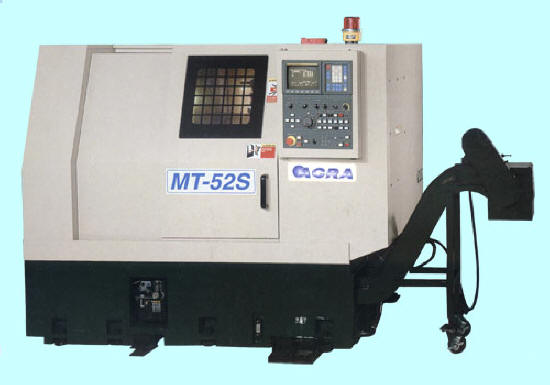

MT-52S/52L

Click On The Image To Enlarge
DESCRIPTION:
The ACRA MT-52 Series CNC Precision Lathe Is A True 45° Slant Bed, 2" Bar CNC Turning Center, With A Proven Track Record In The U.S., Europe, And Asia. It Is Fast And Precise, And Its Standards Meet Or Exceed JIS To Deliver Lasting Quality And Productivity.

The Construction Of This Machine Results In Increased Cutter Life And Superior Finishes. The Heavy Ribbed Torque Tube Meehanite Casting Is Designed To Withstand Shock And Torque.

Integral Box Ways Are Hardened To A Minimum Of 56° HRC To At least 0.050", And Turcite-B Mated Surfaces. The World Class Spindle Cartridge Is Direct Belt Driven By A FANUC Alpha P12 Hi Torque AC Brushless Six Pole Motor That Delivers Higher Torque At Lower RPM. Its Special Housing Virtually Eliminates Vibration And Thermal Distortion. The Quick And Rugged turret Is A Reliable Bi-Directional Hydraulic Type With Curvic Coupling To Allow Heavy Cuts.
A Wide Range Of Hi Tech Options Are Available Such As milling And Drilling, Fully Synchronized Sub-Spindle, B Axis, And More. Built With Pride And Integrity By Experienced Craftsmen, This Machine's Performance Will Consistently Exceed Expectations.

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

MT-52S MT 52S CNC Precision Lathe 5,500 LBS

MT-52L MT 52L CNC Precision Lathe 7,040 LBS
