Quick Specifications
| |

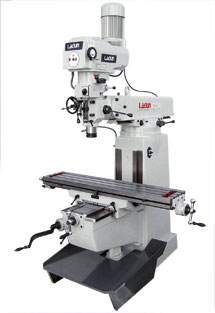

FTV-2 |
FTV-2-EVS |
| Head Type |
Hand Variable Speed |
Electronic Variable Speed |
| Main Motor (Constant) |
3 HP |
5 HP |
| Spindle Taper - 3 3/8" Diameter (86mm) |
R-8 (#40 or #30 Opt.) |
R-8 (#40 or #30 Opt.) |
| Spindle Speed - Infinite Variable (Hi - Low) |
55 ~ 4,250 RPM |
0 ~ 5,000 RPM |
| Table & Cross Travels (Manual) |
30" x 16" / 38½" x 16"
(762 x 406 / 978 x 406mm) |
30" x 16" / 38½" x 16"
(762 x 406 / 978 x 406mm) |
| Machine Weight |
2,750 / 2,850 lbs
(1,247 / 1,293 kgs) |
2,750 / 2,850 lbs
(1,247 / 1,293 kgs) |
Accessories
- POWER DRAW BARS -
Available in standard and heavy duty
- DIGITAL READ OUT (DRO)
- 2, 3, and 4 axis systems from Acu-rite®,
Anilam®, Newall®,
and Sony®. Resolutions of
0.0005", 0.0002", or 0.0001"
professionally installed.
- INCH/METRIC LCD QUILL SCALE
- UNIVERSAL DIVIDING HEAD
- With 40 to 1 ratio Universal model
with gears to drive from left side of
machine table. Supplied with tailstock,
indexing plates for manual operation
rapid index feature and tailstock.
Available in 8", 10" 12" and 14".
- LAGUN H.D. GEARED POWER
FEEDS - 8 speed, Available for
X, Y and Z.
|
- ROTARY TABLES -
These tables can be mounted either
horizontally or vertically, supplied
with 3 dividing plates. A wide range of
angular divisions can be made using a
index plate having several circles of
equal rotation of the workpiece to
within 20 seconds of arc. Available in
10" and 12" diameters.
- RISER BLOCK - Use
to obtain clearance for very large
workpieces . Riser block extends the
height range 4"-8"-12" are easily
mounted to the column of the machine
with four bolts. Available in 4", 8" and
12" high.
- INFINITE VARIABLE POWER FEED
UNIT - Longitudinal #140, Cross
#140, Vertical Knee #140 (#150 Also
Available)
- SPINDLE - One piece
spindle #30 or #40, also available
universal quick switch 200 and 300
|
|
|
