MILLING MACHINES

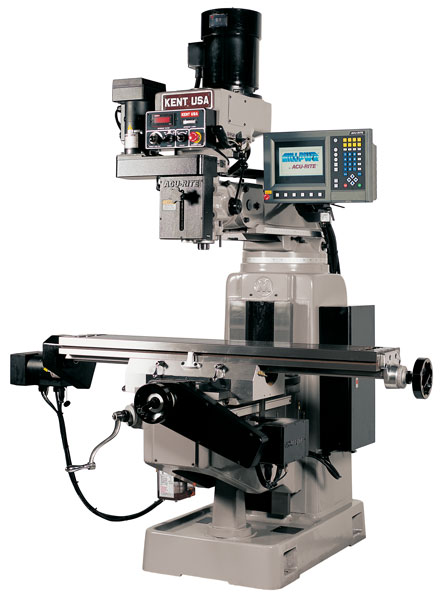

KTM-4VKF Knee Type with MillPwr 2/3

Click Image For Larger Pic
Click On The Image To Enlarge

 FEATURES:
  • 3 HP spindle motor, variable speed milling head with AC-Freq drive head, digital RPM display, analog spindle load meter, and automatic spindle direction reversal when switching between high & low speed ranges
  • 60-550-4500 spindle RPM (Hi/Low gear)
  • Automatic centralized lubrication system with metered check-valves
  • Single-phase or 3-phase power without the need for a phase converter
  • Hardened and Ground (Hrc-52) table surface and all slide ways
  • Solid box ways on saddle and column
  • Easy conversational programming, DRO-mode allows for full manual operations
  • Engraving feature and DXF file import capability built-in, Compact Flash and 10” flat panel color LCD display



MADE IN TAIWAN

SPEC\MODEL 4VKF MillPwr 2/3
Table Size: 12” x 50”
Table Travel (X-Axis): 30”
Saddle Travel (Y-Axis): 15”
Knee Travel (Z-Axis): 15.25”
Quill Travel: 4″ w/ MillPwr–3 CNC control
Ram Travel: 22″
Spindle Motor: 3 HP (Inverter-duty)
Spindle Speed: 60–550–4500 RPM (60–6000* on HS head optional)
Spindle Taper: R-8
Quill Diameter: 3.375″
Quill Feed Rate: 0.0015/0.003/0.006” per rev
Drilling Capacity (Manual): 0.75″ Diameter
Drilling Capacity (Power): 0.37″ Diameter
Boring Capacity: 6.0″ Diameter
Milling Capacity: 2.0 in3/min
Maximum Work Load (Center): 850 LBS
Spindle Nose to Table Surface: 2.75” – 18”
Spindle Center to Column: 5” – 27”
Machine Net Weight: 3400 LBS
Shipping Weight: 3600 LBS
Shipping Dimension: 72″ x 72″
Power Requirements: 220v, 3 phase, 60 Hz, 10 Amp (optional 440v power requires 5A) 110v dedicated for CNC control, 20 Amp

Brochure | Video 1 | Video 2
