1400 SVS

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

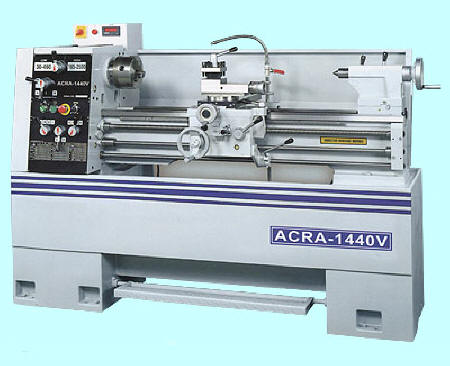

ATEL7 14X40 SVS Precision Engine Lathe 1,635 LBS



FEATURES:

BED
  • One Piece Casting Base
  • Quality Cast Iron FC30 with Vibration Relieved Stress
  • Induction Hardened And Precision Ground 5HP (3.75Kw) 3-Phase High Frequency Motor
  • Foot Brake
  • Emergency Stop Button
  • Jogging Switch Button
SPINDLE
  • Electronic Infinitely Variable Speed With A.C. Inverter
  • Supported by 2 Taper Roller Precision Bearings
  • Camlock D1-4 Spindle Nose
  • 0.38mm (1 1/2") Spindle through Hole
UNIVERSAL GEAR BOX
  • Complete Threading Range: 40 Imperial threads And 37 Metric Threads
  • Easier Lubrications With enclosed Gearbox
HEAD STOCK
  • 2 Headstock Gear Speed Ranges
  • Electronic Control Panel With RPM Display, Light Indicator For High+Low Speed Ratio, Speed Control Electric Knob, Emergency Switch And Motor Start Push Button.
APRON AND SADDLE
  • Automatic Feed And Threading, Fully Interlocked
  • Saddle And Top Slide Locking System
  • Forward-Off-Reverse Lever
  • 4 Way Tool Post
  • T Slot Compound
TAILSTOCK
  • Rigid Construction And Super Tight Clamp
  • Morse Taper No.3 Internal Taper
  • Hardened and Ground Tang Quill
