1500 C

MADE IN TAIWAN

STOCK# MODEL NET WEIGHT

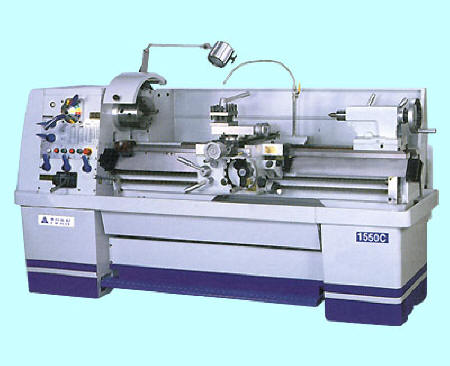

ATEL1550C 15X50 C Precision Engine Lathe  3,200 LBS



FEATURES:

BED
  • Base One Piece Casting
  • Meehanite Casting, Vibration Stress Relieved
  • Induction Hardened And Precision Ground Bed Ways
  • Precision Hand Scraped Removable Gap
  • Foot Brake
  • Turcite B Coating Between The Bed And Carriage
APRON & SADDLE
  • Automatic Feed And Threading, Fully Interlocked
  • Saddle And Top Slide Locking System
  • Forward-Off-Reverse Lever
  • 4 Way Tool Post
  • T Slot Compound

HEAD STOCK

  • Forward Reversing Clutch
  • All Gears Chromium Molybdenum, Heat Treated And Precision Ground
UNIVERSAL GEAR BOX
  • Oil Bath Lubrication
  • Heat Treated Precision Ground Gears
  • Inch, Metric, Module And Diametrical Threads
SPINDLE
  • Dynamically Balanced, Hardened And Precision Ground
  • Supported By 2 Precision Taper Roller Bearings And One Ball Bearing

[ 1500C Specs | 1500C Accessories | Brochure ]

[ Engine Lathes Models ]
