Special Milling Heads



SPECIFICATIONS

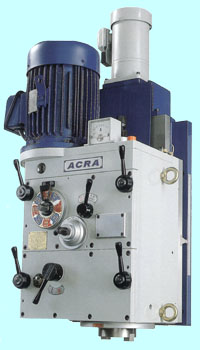

U12
Spindle Motor 12.5 HP
Taper of Spindle Nose N.T. No 50
Diameter of Spindle Nose 5.06"
Steps of Spindle Speed 8 Section
Spindle Speeds 80~800 RPM
Max Diameter of Cutter 9.84"
Vertical Travel 13.78"
Reversal Slide 0.2 INCH/REV
Voltage 220V AC / 3 PH
Weight 1278 LBS





SPECIFICATIONS

U10
Spindle Motor 10 HP
Taper of Spindle Nose N.T. No 50
Diameter of Spindle Nose 5.06"
Steps of Spindle Speed 6 Section
Standard Spindle Speed 90~615 RPM
High Spindle Speed 117~810 RPM
Max Diameter of Cutter 7.87"
Work Travel 23.62"
Reversal Slide 0.02 INCH/REV
Voltage 220V AC / 3 PH
Weight 1763 LBS
